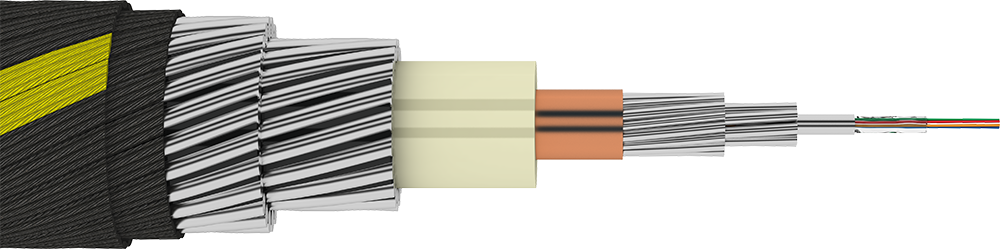

Materials
Optical fiber
Water-blocking gel
Steel tube
Double steel wire armor with sealing compound
Hermetically sealed copper tube – monitoring conductor
Insulation
Double steel wire armor
Two layers of polypropylene yarns, space between them filled with waterproofing bitumen compound
| Cable diameter, mm | 28.0...42.0 |
| Cable weight, kg/km | 1980...4950 |
| Cable breaking load (CBL), kN | 355...900 |
| Nominal permanent tensile strength (NPTS), kN | 160...410 |
| Nominal operating tensile strength (NOTS), kN | 195...500 |
| Nominal transient tensile strength (NTTS), kN | 240...615 |
| Hydraulic pressure resistance, MPa | 40 |
| Water ingress, MPa | 40 |
| Maximum depth, m | 3000 |
| Operating temperature | -40°С...+50°C ... |
| Installation temperature | -10°С...+50°C ... |
| Transportation and storage temperature | -50°С...+50°С°C ... |
| Minimum bending radius | 20 x cable diameter |
| Design life | 25 years |
