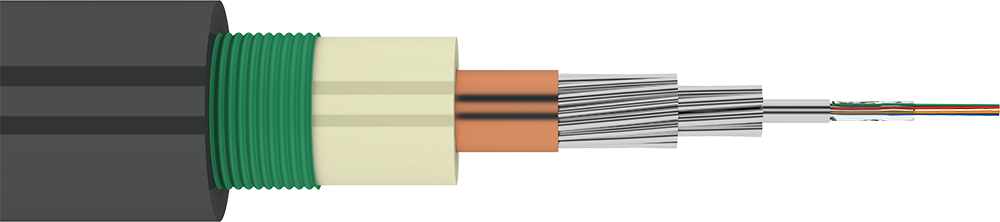

Materials
Optical fiber
Water-blocking gel
Steel tube
Double steel wire armor with sealing compound
Hermetically sealed copper tube – monitoring conductor
Insulation
Corrugated steel tape armor
Polyethylene outer jacket
| Cable diameter, mm | 16.8...25.8 |
| Cable weight, kg/km | 438...1163 |
| Cable breaking load (CBL), kN | 50...100 |
| Nominal permanent tensile strength (NPTS), kN | 22...44 |
| Nominal operating tensile strength (NOTS), kN | 27...52 |
| Nominal transient tensile strength (NTTS), kN | 34...66 |
| Hydraulic pressure resistance, MPa | 40 |
| Water ingress, MPa | 40 |
| Maximum depth, m | 4000 |
| Operating temperature | -40°C...+50°C ... |
| Installation temperature | -10°C...+50°C ... |
| Transportation and storage temperature | -50°C...+50°C ... |
| Minimum bending radius | 20 x cable diameter |
| Design life | 25 years |
